Honeycomb Belts

Honeycomb Belts – Flat Wire Conveyor Belts Manufacturers & Suppliers

Honeycomb Conveyor Belts, also known as Flat-Wire Belting, are one of the most versatile and cost-effective conveyor solutions widely used across industries. Designed for durability, high strength, and smooth operation, these belts are perfect for conveying light to heavy loads with minimal maintenance.

Whether you are in food processing, automotive, heat-treatment, or packaging, our honeycomb belts deliver performance, reliability, and global standards.

Request A Quote Today!

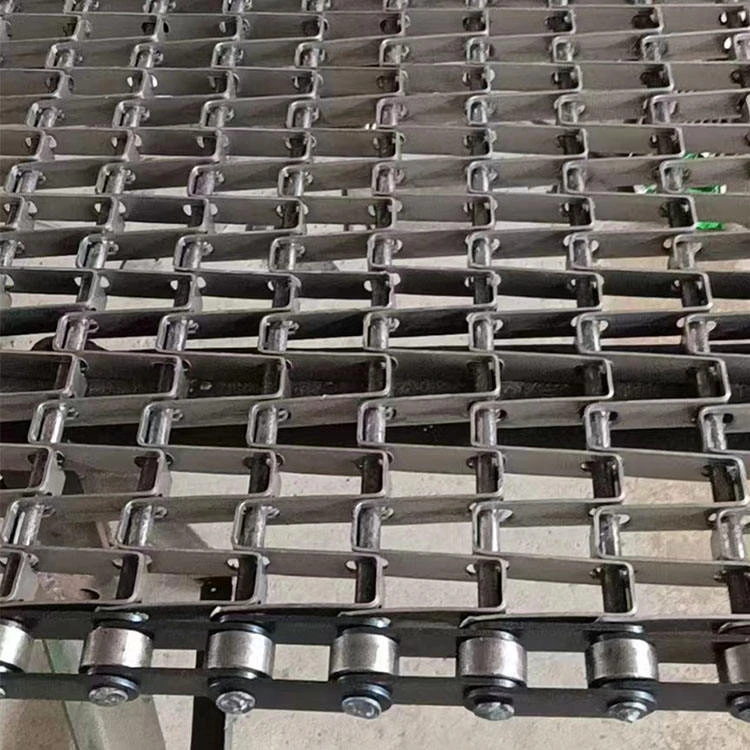

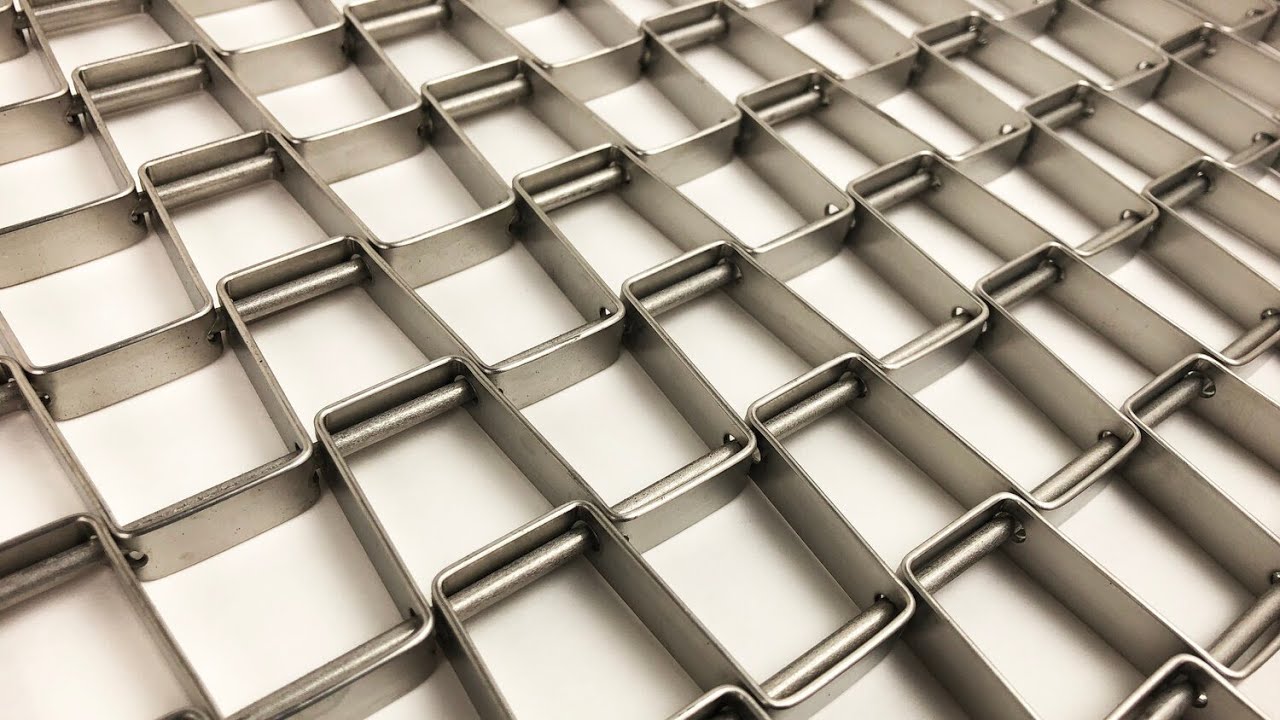

Stainless Steel Honeycomb Flat Wire

What is a Honeycomb Conveyor Belts?

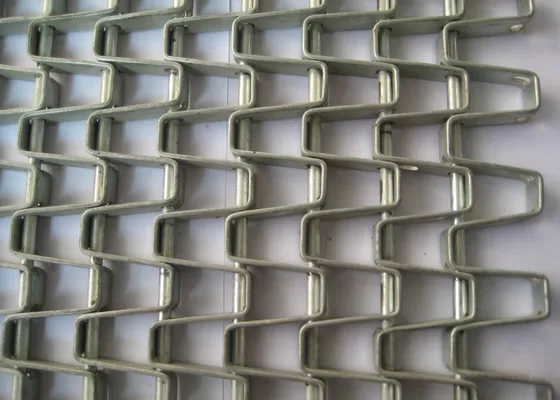

A Honeycomb Belt (Flat-Wire Conveyor Belts) is made from flat stainless-steel strips connected by cross rods, creating a honeycomb-like open structure.

  • Provides maximum strength with minimal weight

  • Ideal for air circulation & drainage

  • Works in low to high-temperature environments

  • Offers long service life & reduced downtime

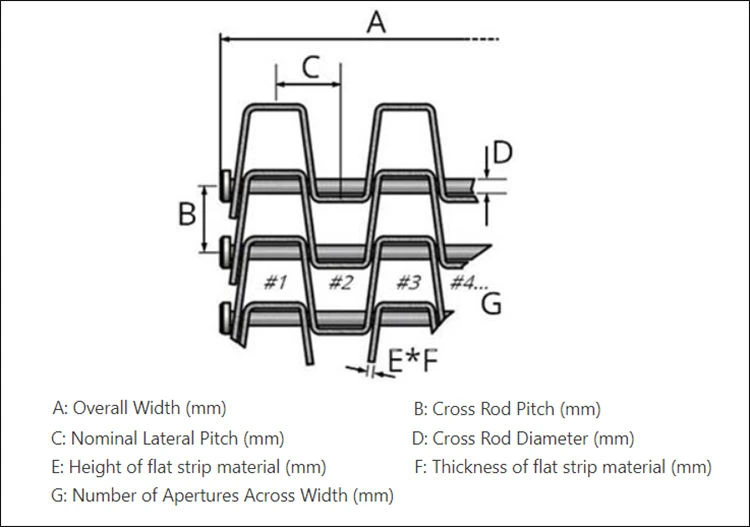

Specifications of Honeycomb Belts

Our belts are manufactured to precise engineering standards to ensure optimum performance.

Specification Table

Material Options                Wire Pitch (mm)                Cross Rod Diameter (mm)             Working Temperature Range
Stainless Steel 304                         12.7 – 25.4                         1.6 – 3.0                              Up to 800°C
Stainless Steel 316                         12.7 – 38.1                         2.0 – 4.0                              Up to 1200°C
Carbon Steel                         12.7 – 25.4                         1.6 – 3.0                              Up to 400°C
Galvanized Steel                         12.7 – 25.4                         1.6 – 2.5                              Up to 350°C

Available Materials

  • Stainless Steel 304 / 316 / 310

  • Carbon Steel

  • Galvanized Steel

  • Customized materials on request

Edge Types

  • Welded Edge – for heavy-duty usage

  • Clinched Edge – economical, lightweight applications

Sprockets & Drive Components

Our honeycomb belts are compatible with standard sprockets, rollers, and drive systems for smooth engagement.

    • Standard & customized sprockets available

    • Corrosion-resistant materials

    • Precise pitch alignment

Applications of Honeycomb Conveyor Belts

  • Honeycomb belts are used globally across multiple industries:

    • ✅ Food Industry – Baking, cooling, washing, drying

    • ✅ Automotive Industry – Heat treatment, painting lines

    • ✅ Packaging & Logistics – Carton conveying, material handling

    • ✅ Electronics – PCB washing, cooling tunnels

    • ✅ Glass & Ceramics – Kiln and furnace conveyors

Advantages of Honeycomb Belts

  • Long service life with minimal maintenance

  • Excellent air circulation for heating/cooling processes

  • Strong yet lightweight structure

  • Easy to clean & sanitize

  • Suitable for straight running conveyor systems

How to Select the Right Honeycomb Belts

When choosing a honeycomb belts, consider:

    • Type of material (based on temperature & corrosion resistance)

    • Wire pitch & open area requirements

    • Load capacity & product weight

    • Operating temperature & environment

    • Edge type & sprocket compatibility

Standard Specifications

  • Pitch Range: 12.7 mm – 38.1 mm

  • Belt Width: Up to 4000 mm

  • Cross Rod Diameter: 1.6 mm – 4 mm

  • Operating Temp Range: -60°C to 1200°C

Installation & Maintenance

  • Ensure proper sprocket alignment

  • Maintain correct belt tension

  • Regular lubrication (if applicable)

  • Inspect for wear and replace when necessary

  • Follow recommended cleaning procedures

Get Your Custom Quote!

Over 15 Years Of Experience

👉 They are the same. Honeycomb belt is another name for flat wire conveyor belt.

Yes, in terms of material, pitch, width, and edge type.

Food, automotive, heat treatment, packaging, ceramics, glass, electronics.
